Product Description

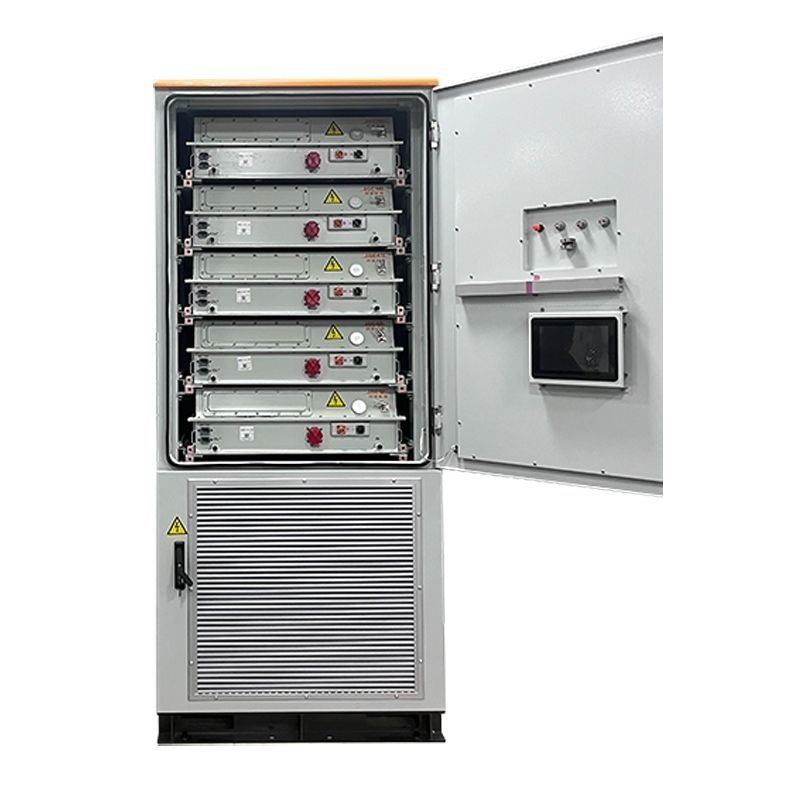

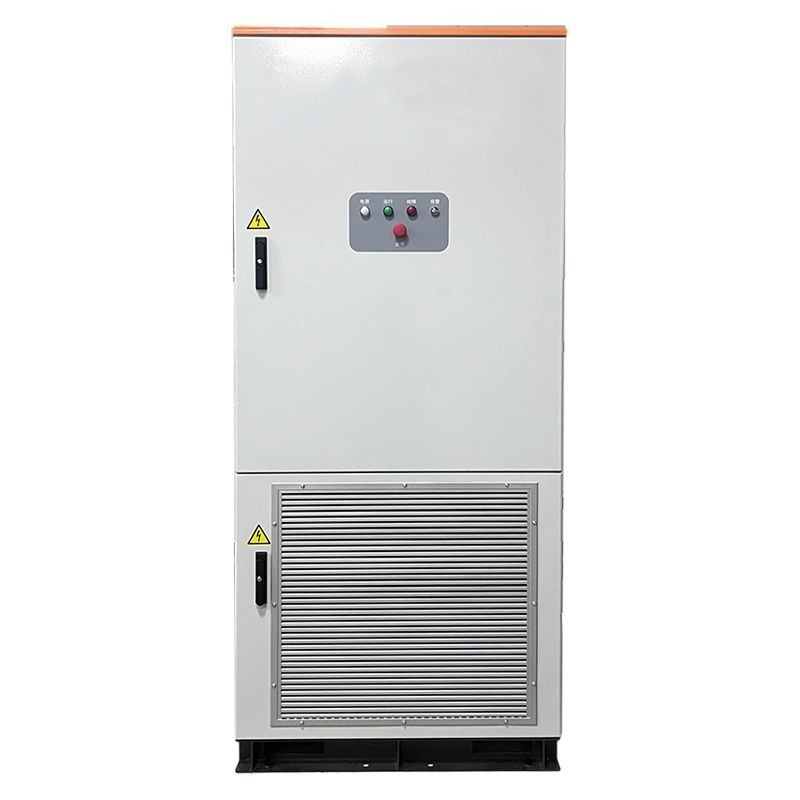

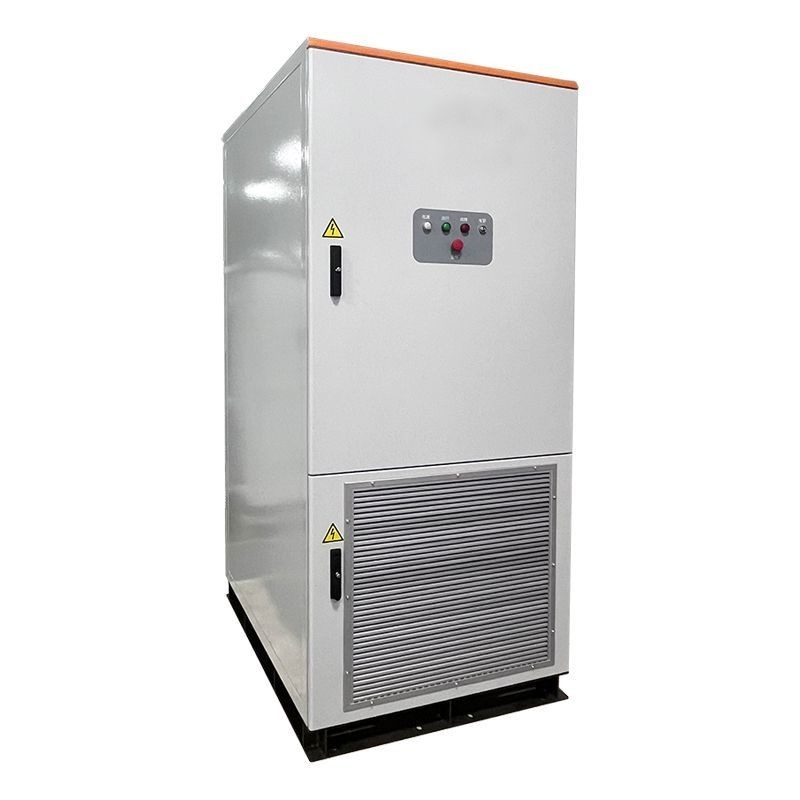

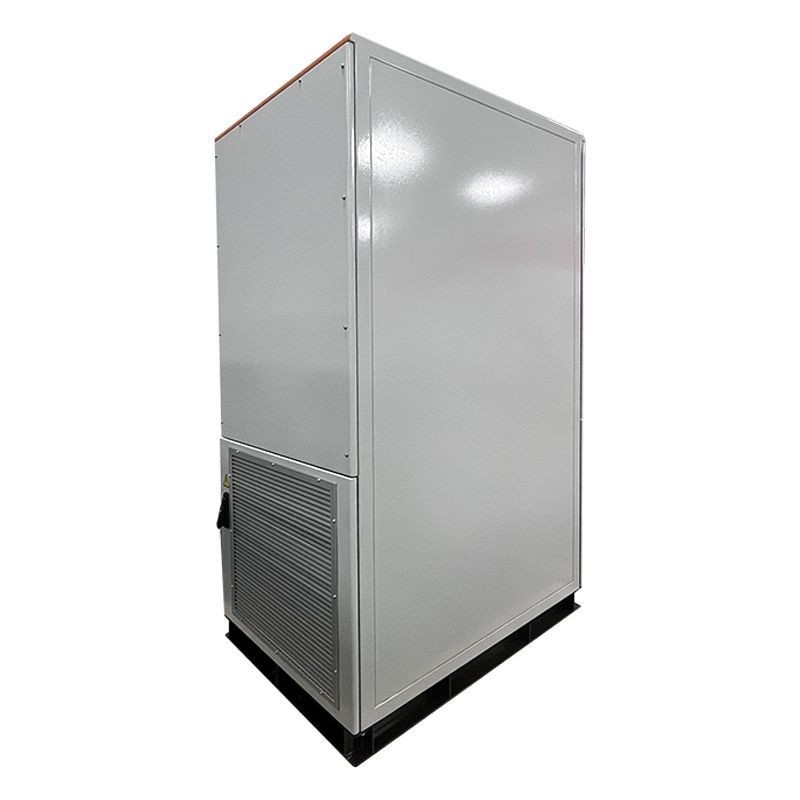

Technical Data of Liquid-cooling Commercial&Industrial ESS

Product Model	LS215L-100K-1S240-5P48-280	LS232L-100K-1S260-5P52-280
AC Side
Rated Power	100kW	100KW
Maximum Output Power	110KW	110KW
Permissible Grid Voltage	400V(-15%～+10%)	400V(-15%～+10%)
Permissible Gird Frequency	50/60Hz±2.5Hz	50/60Hz±2.5Hz
Rated Input Current	158A	158A
Wiring Configuration	3P4W+PE	3P4W+PE
DC Side
Cell Type	LFP 3.2V/280AH	LFP 3.2V/280Ah
Rated Energy	215.04kWh	232.96KWh
Voltage Range	648-864V	702-936V
Battery Pack Configuration	1P48S/43KWh	1P52S/46.6KWh
Battery System Configuration	1P240S（5*1P48S)	1P260S（5*1P52S)
Energy	215.04kWh	232.96KWh
Highest Efficiency Of The PCS	98%	98%
System Efficiency	>88%	>88%
Charge-discharge Rate	≤0.5C	≤0.5C
System Data
Dimensions (DxWxH）	100013502391mm(Eyebolts included)	100013502391mm(Eyebolts included)
Dimensions (DxWxH）	100013502300mm(Eyebolts not included)	100013502300mm(Eyebolts not included)
Weight	2400kg	2550kg
Noise	<75dB	<75dB
IP Rating	IP54	IP54
Operating Temperature	-20~50℃(>45℃ derating)	-20~50℃(>45℃ derating)
Cooling	Liquid cooling	Liquid cooling
Ambient Humidity	0-95%(non-condensing)	0-95%(non-condensing)
Operating Altitude	2000m(derating if more than 2000m)	2000m(derating if more than 2000m)
