Product Description

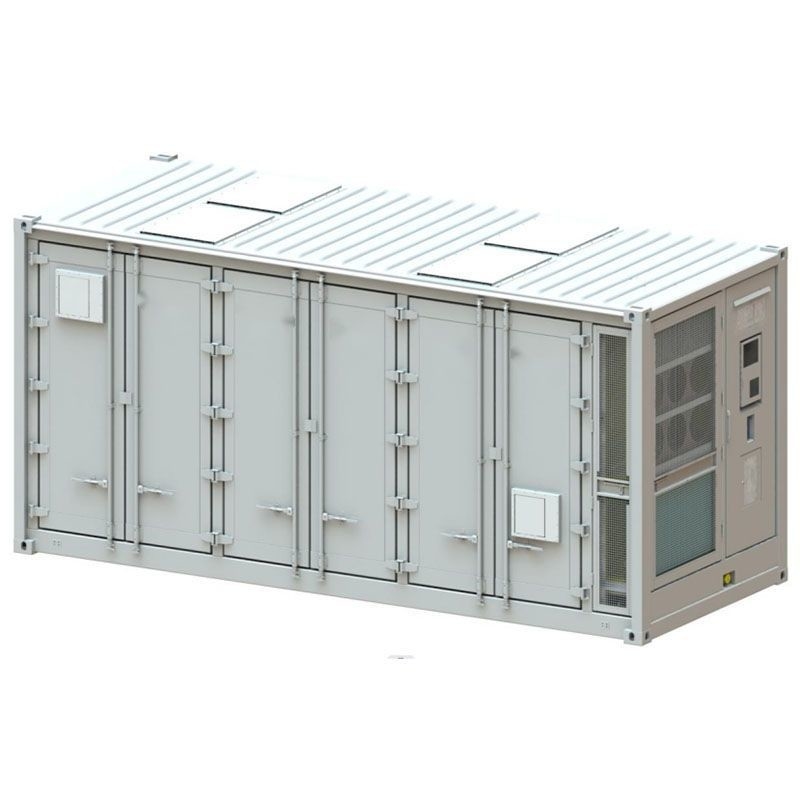

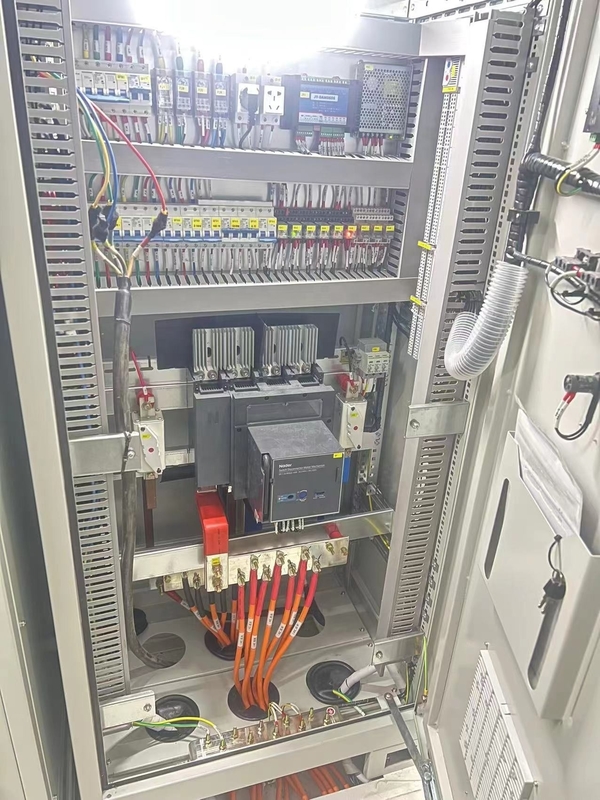

The battery energy storage system is an advanced technological solution that allows energy storage in multiple ways for later use. They make renewable energy more reliable and thus more viable. Our 20feets container energy storage system has two options 3.727MWh and 5.111MWh to meet different energy supply need. Our energy Storage Container integrated with full set of DC side storage system inside including battery racks, liquid cooling system, fire fighting system and electrical cabinet.

Technical Data of Container Energy Storage System

No.	Item	LS3727-BSC-10S416-8P52-280		LS5111-BSC-12S416-4P104-280	Remark
1	Configuration	416s10p	416S12P
2	Rated Energy	3727.36kWh	5111.8KWh		100%DOD,25℃,0.5C
3	Operating Voltage Range	1081.6~1497.6V	1040~1500V		For cell 2.6V~3.6V
4	Dimension	6058mm2438mm2896mm	6058mm2438mm2896mm
5	Mass	~35000kg	~43000Kg
6	Rated charge current	1400A(for 0.5P system)	1920A(for 0.5P system)		According to current map
7	Rated discharge current	1400A(for 0.5P system)	1920A(for 0.5P system)		According to current map
8	Short overload charging current (≤1min)	2800A(for 0.5P system)	3840A(for 0.5P system)		According to current map
9	Short overload charging current (≤1min)	2800A(for 0.5P system)	3840A(for 0.5P system)		According to current map
10	Temperature range in cabin	-20~50℃	-20~50℃
11	IP level of cabin	Bat. Room IP54 Electric room IP54	Bat. Room IP54 Electric room IP54
12	Cooling and heating type	Liquid cooling / heating	Liquid cooling / heating
13	Communication agreement	CAN, RS485, TCP/IP	CAN, RS485, TCP/IP
14	Environment temperature	-30℃~55℃	-30℃~60℃		/
15	environment humidity	5%~90%RH	10%~90%RH		/
16	Altitude	≤3000m	≤3000m		/
